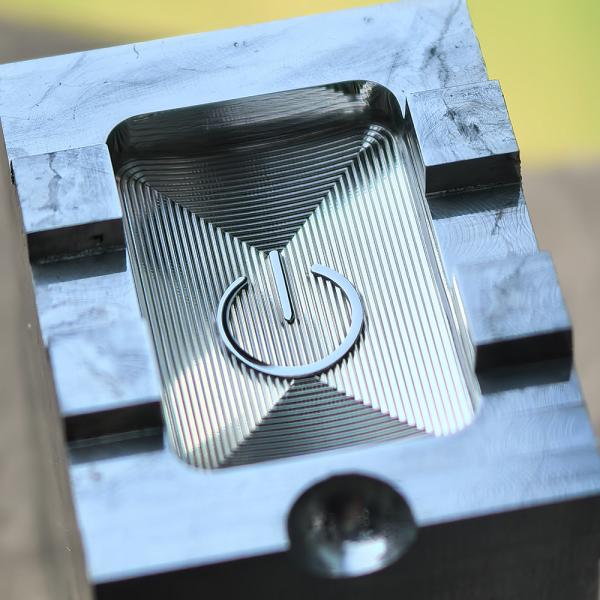

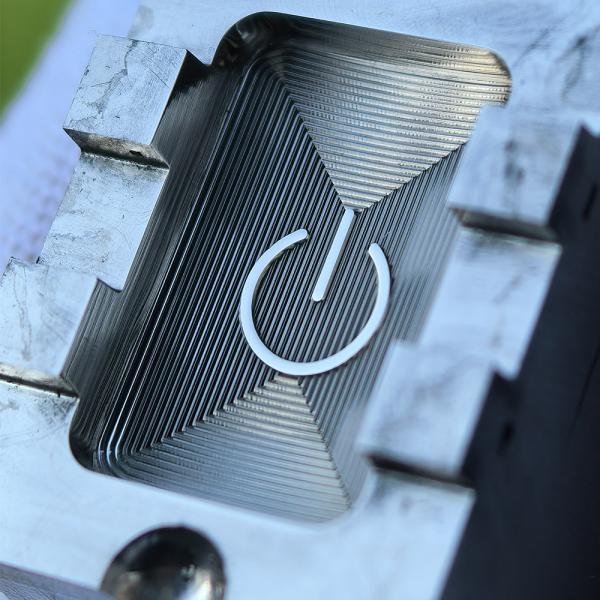

Electroformed Mold Core Manufacturer For Electronics Direct Supply ±0.003mm Accuracy Parts

As a specialized manufacturer of electroformed mold cores for the electronics industry, we directly supply high-precision mold cores to electronics component producers, consumer electronics OEMs, and micro-connector manufacturers. Our core capability lies in crafting electroformed mold cores that deliver ±0.003mm dimensional accuracy—critical for tiny, high-performance electronic parts where even micron-level deviations can cause signal failure, poor connectivity, or assembly issues. By combining advanced electroforming technology with direct supply chains, we eliminate middlemen to deliver mold cores that meet the miniaturization and precision demands of modern electronics, from prototype to mass production.

Electronic components (e.g., micro-connectors, sensor housings, circuit board fixtures) are shrinking while growing more complex—generic mold cores can’t keep up. Our electroformed solutions address three key pain points:

• Micron-Level Precision for Tiny Features: Electronic parts often include 0.1–0.5mm features (e.g., connector pinholes, sensor contact points, or micro-grooves for wire routing). Standard machining hits limits at 0.01mm, but our ±0.003mm tolerance ensures these features align perfectly, preventing signal loss or short circuits;
• Surface Smoothness for Electrical Performance: Rough mold cores produce parts with uneven surfaces, which disrupt electrical conductivity (e.g., in connector contacts) or trap contaminants (critical for dust-sensitive electronics). Our electroformed cores achieve Ra ≤0.008μm mirror finishes, ensuring consistent electrical performance and reliability;
• Complex Geometry for Miniaturization: Modern electronics demand 3D curved surfaces, hollow structures, or asymmetrical designs (e.g., flexible circuit connectors). Electroforming replicates these without the distortion of CNC machining, enabling the miniaturization that defines next-gen devices.

Our electroformed mold cores are engineered to hit tight tolerances for electronic-critical features:

• Pinhole & Contact Point Precision: 0.1mm-diameter connector pinholes maintain ±0.002mm tolerance, ensuring proper mating with sockets (no "loose connections" in devices);
• Spacing Consistency: Parallel micro-grooves (0.2mm wide) for wire routing have ±0.003mm spacing, preventing wire overlap that causes shorts;
• 3D Contour Accuracy: Curved sensor housings match CAD designs within ±0.005mm, ensuring proper fit in compact device enclosures (e.g., smartphone cameras, wearables).

We tailor materials and finishes to electronic performance needs:

• Conductive/Insulative Options: Use nickel (conductive, ideal for connector molds) or nickel-pTFE alloys (insulative, for circuit board fixtures) to match part functionality;
• Corrosion Resistance: Mold cores treated with anti-oxidation coatings resist degradation from cleaning agents (e.g., isopropyl alcohol) used in electronics production, extending core lifespan to 200k+ cycles;
• Release Performance: Ultra-smooth surfaces reduce adhesion of plastic or metal alloys (e.g., LCP, PEEK) used in electronic parts, lowering scrap rates by 15–20%.

As a direct manufacturer, we streamline your workflow:

• Rapid Prototyping: 5–8 days for prototype mold cores, with 24-hour design feedback to refine micro-features (e.g., adjusting pinhole draft angles for easier demolding);
• Mass Production Scalability: From 10–50 prototype cores to 1,000+ mass production units, with lead times (12–18 days) that match electronics OEM launch schedules (e.g., new smartphone or wearable releases);
• Technical Collaboration: Our engineers work with your R&D team to optimize designs for electroforming (e.g., reinforcing thin walls in micro-connectors), reducing costly redesigns during validation.

Our electroformed mold cores produce critical components:

• Micro-Connectors: USB-C pins, board-to-board connectors, and battery terminals (where pin alignment ensures reliable charging/data transfer);
• Sensor Housings: Proximity sensors, pressure sensors, and camera modules (where dimensional accuracy ensures proper sensing range);
• Circuit Board Fixtures: PCB mounting brackets, heat sink clips, and flexible circuit guides (where fit prevents short circuits or component damage);
• Consumer Electronics Parts: Smartwatch button molds, earbud charging port inserts, and laptop hinge components (where miniaturization and precision drive user experience).

Need electroformed mold cores for ±0.003mm accuracy electronic parts? Share your 3D designs (CAD/STEP) of connectors, sensors, or fixtures, and we’ll provide:

• A free DFM report focusing on micro-feature optimization for electronics;
• Prototype cores with full inspection data (CMM measurements, surface finish analysis);
• Cost-efficient scaling plans for mass production.

As your direct manufacturing partner, we deliver the precision that modern electronics demand—no compromises, no delays.
